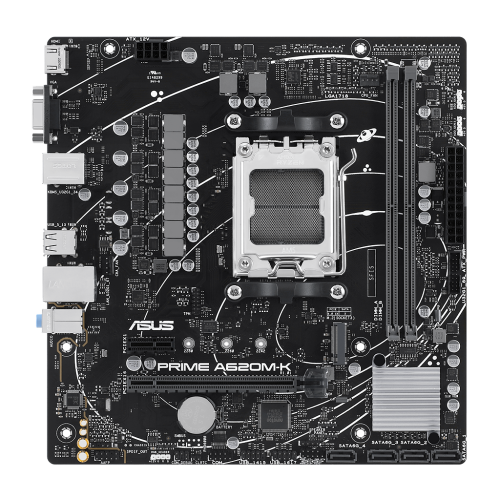

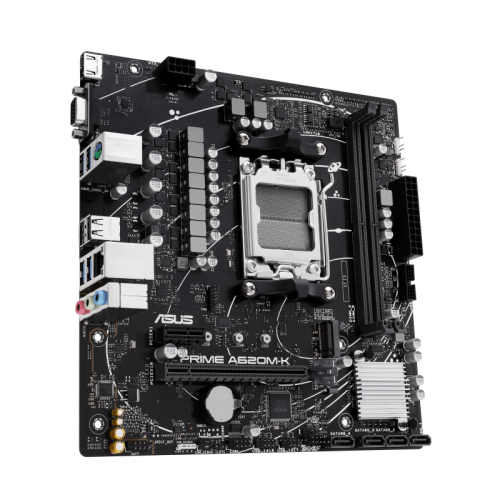

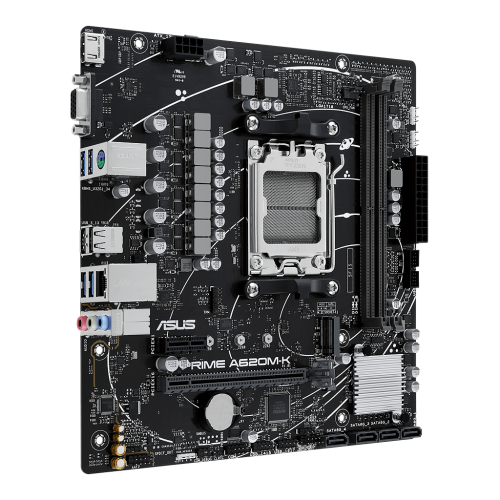

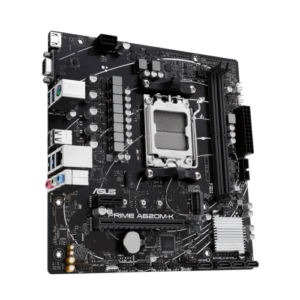

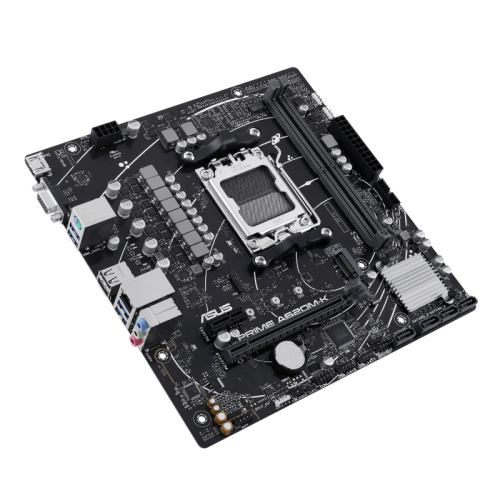

Asus PRIME A620M-K-CSM AM5 mATX Motherboard

Asus PRIME A620M-K-CSM AM5 mATX Motherboard - Image 2

Asus PRIME A620M-K-CSM AM5 mATX Motherboard - Image 3

Asus PRIME A620M-K-CSM AM5 mATX Motherboard - Image 4

Asus PRIME A620M-K-CSM AM5 mATX Motherboard - Image 5

Asus PRIME A620M-K-CSM AM5 mATX Motherboard - Image 6

Asus PRIME A620M-K-CSM AM5 mATX Motherboard

Original price was: ৳ 13,890.Current price is: ৳ 12,999.

Key Features

Model: PRIME A620M-K-CSM
Supported CPU: Ryzen 9000/8000/ 7000 Series Processors for Socket AM5
Supported RAM: 2x DDR5, up to 96GB, 7200+(OC)
Graphics Output: 1x HDMI, 1 x VGA
Features: 1 x Realtek 1Gb Ethernet

Chat Through WhatsApp

Category: ASUS (AMD)

Specification

Basic Information
Supported CPU	AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Chipset	AMD A620 Chipset
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Form Factor	micro-ATX Form Factor 8.9 inch x 8.7 inch (22.6 cm x 22.1 cm)
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback Audio Features – Audio Shielding – Premium audio capacitors – Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Expansion Slots
PCI	AMD Ryzen™ 9000 & 7000 Series Desktop Processors* 1 x PCIe 4.0 x16 slot (supports x16 mode) AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD A620 Chipset 1 x PCIe 3.0 x1 slot
M.2 Socket	Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports* AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD A620 Chipset 4 x SATA 6Gb/s ports * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
Memory
Type	DDR5
Slots	2 x DIMM slots
Supported Memory	DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO™) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration
Maximum Memory	Max 96GB
Graphics
Graphics	1 x VGA port 1 x HDMI port * Graphics specifications may vary between CPU types
Connector & Ports
HDMI	1x HDMI 2.1
VGA (s)	1 x VGA port
USB (s)	Rear USB (Total 6 ports) 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 6 ports) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
LAN Port (s)	1 x Realtek 1Gb Ethernet
Supported Storage	1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports
RAID	AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
Audio	3 x Audio jacks

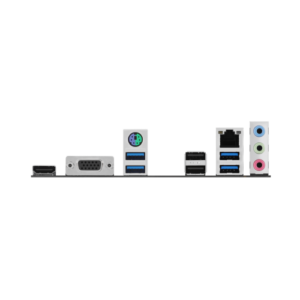

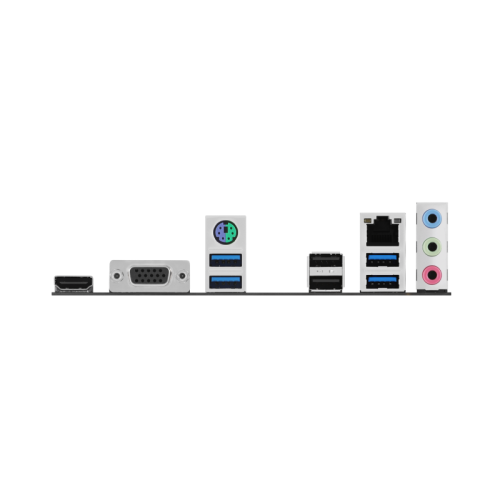

Internal I/O Ports	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 2 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header Back Panel I/O Ports 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x VGA port 1 x HDMI™ port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port
TPM (Trusted Platform Module )	1 x SPI TPM header (14-1pin)
Others
Special Features	ASUS 5X PROTECTION III – DIGI+ VRM – LANGuard – Overvoltage Protection – SafeSlot Core – Stainless-Steel Back I/O ASUS Q-Design – Q-DIMM – Q-LED Core – Q-Slot ASUS Thermal Solution – Aluminum heatsink design Aura Sync – Aura RGB header – Addressable Gen 2 headers
Bundled Software	ASUS Exclusive Software Armoury Crate – Aura Creator – Aura Sync – Fan Xpert – Power Saving – Two-Way AI Noise Cancellation AI Suite 3 – TurboV EVO – DIGI+ VRM – PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode
Warranty Information
Manufacturing Warranty	3 Years Warranty
