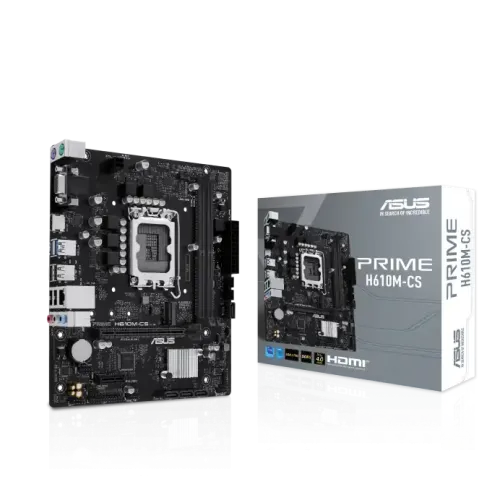

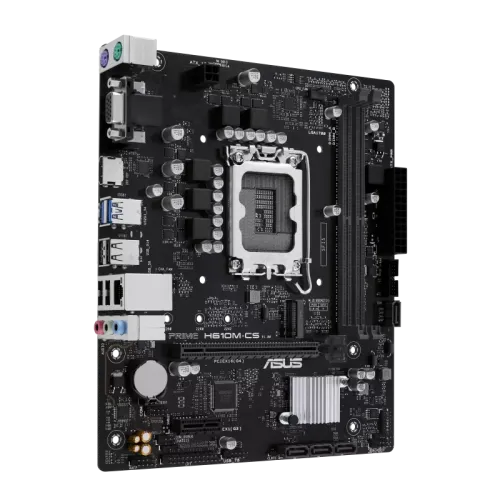

Asus PRIME H610M-CS DDR5 mATX Motherboard
Original price was: ৳ 12,000.৳ 11,800Current price is: ৳ 11,800.
Key Features
- Model: PRIME H610M-CS DDR5
- Supported CPU: 14th, 13th Gen & 12th Gen Processors (LGA1700)
- Supported Memory: 2 x DIMM, Max. 96GB, DDR5
- Graphics Output: 1 x VGA, 1 x HDMI
- Features: 1 x Realtek 1Gb Ethernet
Specification
| Basic Information | ||
| Supported CPU | Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors* Supports up to Intel 65W CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
|
| Chipset | Intel H610 Chipset | |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | mATX Form Factor 8.9 inch x 7.7 inch (22.6 cm x 19.5 cm ) |
|
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback Audio Features – Audio Shielding – Premium audio capacitors – Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
|
| Expansion Slots | ||
| PCI | Intel Core Processors (14th & 13th & 12th Gen) 1 x PCIe 4.0 x16 slot Intel H610 Chipset 1 x PCIe 3.0 x1 slot |
|
| M.2 Socket | 1 x M.2 slot | |
| Memory | ||
| Type | DDR5 | |
| Slots | 2 x DIMM | |
| Supported Memory | 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) |
|
| Maximum Memory | Max. 96GB | |
| Graphics | ||
| Graphics | Supports 4K@60Hz as specified in HDMITM 2.1. | |
| Connector & Ports | ||
| HDMI | 1 x HDMI port | |
| VGA (s) | 1 x VGA port | |
| USB (s) | Rear USB (Total 6 ports) 2 x USB 3.2 Gen 1(5G) ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 4 ports) 1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports |
|
| LAN Port (s) | 1 x Realtek 1Gb Ethernet | |
| Supported Storage | Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel H610 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) 4 x SATA 6Gb/s ports |
|
| Audio | 3 x Audio jacks | |
| Internal I/O Ports | Internal I/O Connectors:

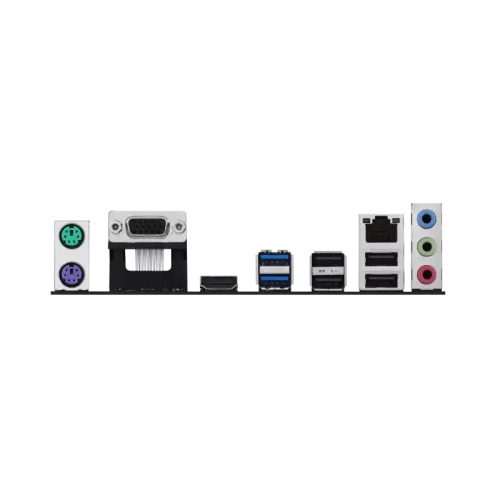

Fan and Cooling related Back Panel I/O Ports: 2 x USB 3.2 Gen 1(5G) ports (2 x Type-A) |
|
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1 pin) | |
| Others | ||
| Special Features | ASUS 5X PROTECTION III – DIGI+ VRM – LANGuard – Overvoltage Protection – SafeSlot Core – Stainless-Steel Back I/O ASUS Q-Design – Q-DIMM – Q-Slot – Q-LED Core ASUS Thermal Solution – Aluminum heatsink design USBGuard |
|
| Bundled Software | ASUS Exclusive Software Armoury Crate AI Suite 3 EPU DIGI+ VRM PC Cleaner ASUS CPU-Z Norton 360 for Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 years warranty | |
Introduction to Asus Prime H610M-CS
The Asus Prime H610M-CS DDR5 MATX motherboard is engineered for high-performance computing, designed to cater to diverse user needs. This motherboard boasts compatibility with the latest DDR5 memory technology, ensuring optimal speed and efficiency.
Key Features of the H610M-CS
Equipped with robust power delivery and advanced cooling solutions, the Asus Prime H610M-CS ensures stability during intense tasks. Its compact MATX form factor allows for versatile builds within smaller cases without compromising performance.
Why Choose Asus Prime H610M-CS?
With its cutting-edge features, reliability, and adaptability, the Asus Prime H610M-CS DDR5 MATX motherboard stands out as an excellent choice for both gamers and professionals. Upgrade your system to enjoy unparalleled performance and longevity.
| RAM Type | DDR5 |
|---|---|
| BRAND | Asus |
