MSI MAG B860M MORTAR WIFI LGA 1851 mATX Motherboard

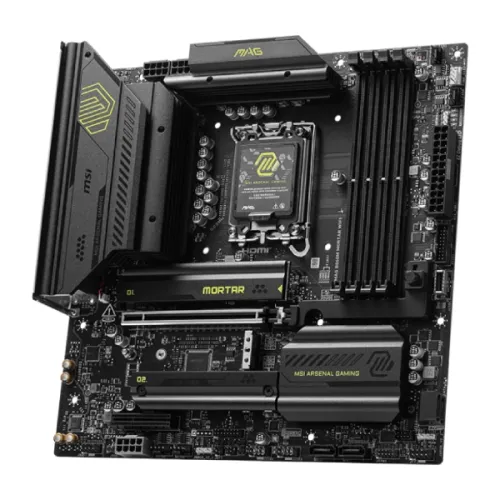

MSI MAG B860M MORTAR WIFI LGA 1851 mATX Motherboard - Image 2

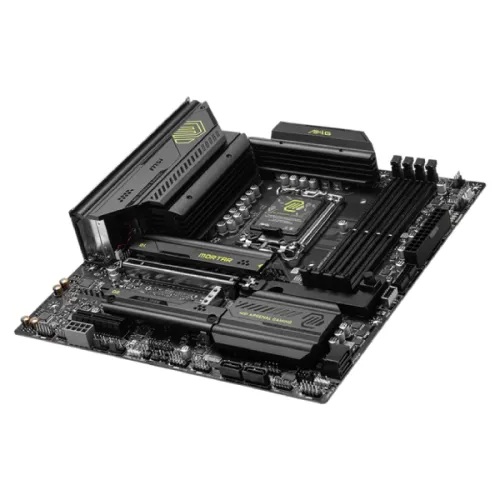

MSI MAG B860M MORTAR WIFI LGA 1851 mATX Motherboard - Image 3

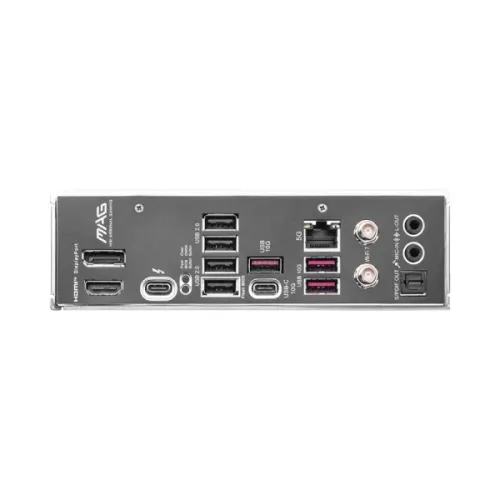

MSI MAG B860M MORTAR WIFI LGA 1851 mATX Motherboard - Image 4

MSI MAG B860M MORTAR WIFI LGA 1851 mATX Motherboard

Original price was: ৳ 36,850.Current price is: ৳ 32,999.

Key Features

Model: MAG B860M MORTAR WIFI
Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851
Supported RAM: 4x DDR5, Dual Channel 9200+ MT/s (OC), Max 256GB
Graphics Output: 1x HDMI, 1x DisplayPort, 1x Type-C DisplayPort
Features: 3x M.2 Slot, 1x 5Gbps LAN, Intel Killer Wi-Fi 7, Bluetooth 5.4

Chat Through WhatsApp

Category: MSI (Intel) Tags: MSI PRO B760M, MSI PRO B760M motherboard, MSI PRO B760M price in bd

Specification

Basic Information
Supported CPU	Supports Intel Core Ultra Processors (Series 2) LGA 1851
Chipset	INTEL B860
Form Factor	mATX 243.84mmx243.84mm
Audio	Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Expansion Slots
PCI	1x PCI-E x16 slot 1x PCI-E x4 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset)
M.2 Socket	3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
Memory
Type	DDR5
Slots	4x UDIMM
Supported Memory	Memory Support 9066 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9200+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s Supports Intel POR Speed and JEDEC Speed Supports Memory Overclocking and Intel® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM
Maximum Memory	256GB
Graphics
Graphics	1x HDMI Support HDMI 2.1 with FRL, maximum resolution of 8K 60Hz 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz 1x Type-C DisplayPort Thunderbolt 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz
Connector & Ports
HDMI	1x HDMI 2.1 with FRL
Display Port (s)	1x DisplayPort 1.4 1x Type-C DisplayPort Thunderbolt 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz
USB (s)	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front)
LAN Port (s)	Intel Killer E5000 5Gbps LAN
Wireless Communication module	Intel Killer BE1750x Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4, MLO, 4KQAM
Supported Storage	3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Audio	1x Front Audio (JAUD)
Internal I/O Ports	1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
Others
Special Features	4x EZ Debug LED 1x EZ Memory Detection LED
Warranty Information
Manufacturing Warranty	3 Year
