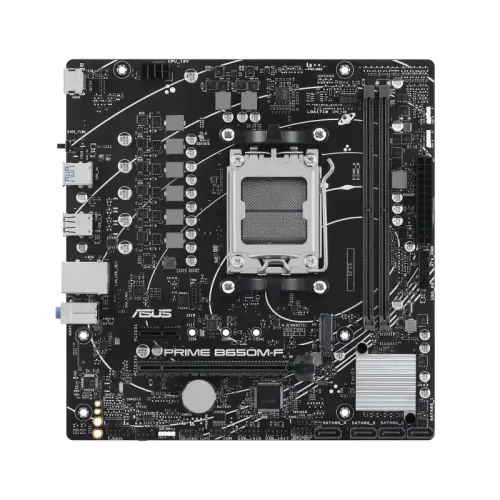

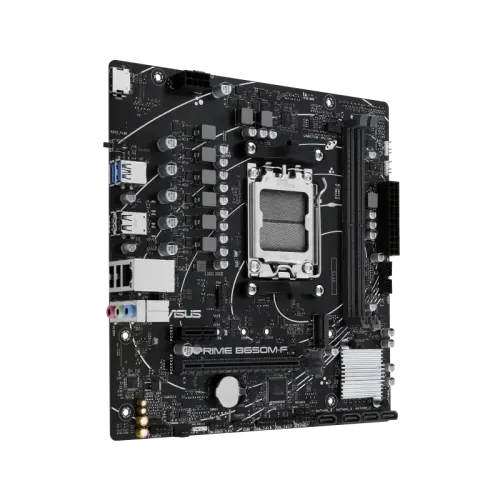

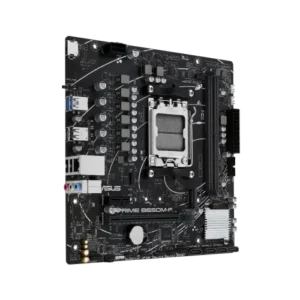

Asus PRIME B650M-F AM5 mATX Motherboard

Original price was: ৳ 16,280.Current price is: ৳ 15,199.

Key Features

Model: PRIME B650M-F
Supported CPU: Ryzen 9000/8000/ 7000 Series Processors for Socket AM5
Supported RAM: 2x DDR5, up to 96GB, 7200+(OC)
Graphics Output: 1x HDMI
Features: 1 x Realtek 1Gb Ethernet

Chat Through WhatsApp

Category: ASUS (AMD)

Specification

Basic Information
Supported CPU	AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Chipset	AMD B650 Chipset
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Form Factor	micro-ATX Form Factor 8.9 inch x 8.6 inch (22.6 cm x 21.8 cm)
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback Audio Features – Audio Shielding – Premium audio capacitors – Dedicated audio PCB layers
Expansion Slots
PCI	AMD Ryzen 9000 & 7000 Series Desktop Processors* 1 x PCIe 4.0 x16 slot (supports x16 mode) AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD B650 Chipset 1 x PCIe 4.0 x1 slot
Memory
Type	DDR5
Slots	2 x DIMM slots
Supported Memory	7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 Non-ECC, Un-buffered Memory Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO)
Maximum Memory	Max. 96GB
Graphics
Graphics	Supports 4K@60Hz as specified in HDMI 2.1.
Connector & Ports
HDMI	1x HDMI
USB (s)	Rear USB (Total 6 ports) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 6 ports) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
LAN Port (s)	1 x Realtek 1Gb Ethernet
Supported Storage	Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports* AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD B650 Chipset 4 x SATA 6Gb/s ports
RAID	AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
Audio	3 x Audio jacks

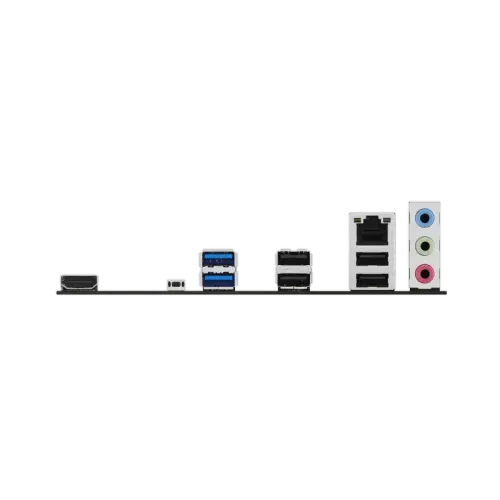

Internal I/O Ports	Internal I/O Connectors Fan and Cooling Related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage Related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header Back Panel I/O Ports 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x HDMI port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack button
TPM (Trusted Platform Module )	1 x SPI TPM header (14-1pin)
Others
Special Features	ASUS 5X PROTECTION III – DIGI+ VRM – LANGuard – Overvoltage Protection – SafeSlot Core – Stainless-Steel Back I/O ASUS Q-Design – Q-DIMM – Q-LED core – Q-Slot ASUS Thermal Solution – Aluminum heatsink design ASUS EZ DIY – BIOS FlashBack button – BIOS FlashBack LED Aura Sync – Addressable Gen 2 headers
Bundled Software	ASUS Exclusive Software Armoury Crate – Aura Creator – Aura Sync – Fan Xpert 2+ – Power Saving – Two-Way AI Noise Cancelation AI Suite 3 – TurboV EVO – DIGI+ VRM – PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode
Warranty Information
Manufacturing Warranty	3 Years Warranty
