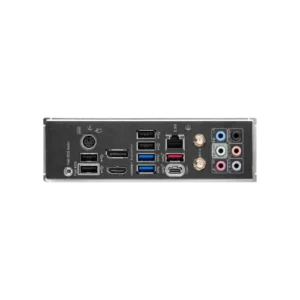

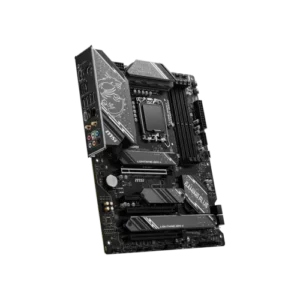

MSI Z790 GAMING PLUS WIFI DDR5 ATX Motherboard

MSI Z790 GAMING PLUS WIFI DDR5 ATX Motherboard - Image 2

MSI Z790 GAMING PLUS WIFI DDR5 ATX Motherboard - Image 3

MSI Z790 GAMING PLUS WIFI DDR5 ATX Motherboard - Image 4

MSI Z790 GAMING PLUS WIFI DDR5 ATX Motherboard

Original price was: ৳ 32,890.Current price is: ৳ 28,800.

Key Features

Model: Z790 GAMING PLUS WIFI
Supported CPU: 14th/13th/12th Gen Core, Pentium Gold & Celeron Processor (LGA 1700)
Supported RAM: 4x DDR5, 7200+MHz (OC), Max 192GB
Graphics Output: 1x HDMI, 1x DisplayPort
Features: 2.5G LAN with Wi-Fi 6E Solution

Chat Through WhatsApp

Category: MSI (Intel) Tags: MSI PRO B760M, MSI PRO B760M motherboard, MSI PRO B760M price in bd

Specification

Basic Information
Supported CPU	Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700
Chipset	INTEL Z790
Form Factor	ATX 243.84mmx304.8mm
Audio	Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Expansion Slots
PCI	3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
M.2 Socket	4x M.2 slots
Memory
Type	DDR5
Slots	4 x DIMM
Supported Memory	Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7200+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel XMP3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory
Maximum Memory	192GB
Graphics
Graphics	1x HDMI Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 8K 60Hz*
Connector & Ports
HDMI	1x HDMI 2.1
Display Port (s)	1x DisplayPort 1.4
USB (s)	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 4x USB 3.2 Gen1 Type A (Front) 1x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
LAN Port (s)	Intel 2.5Gbps LAN
Wireless Communication module	Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA
Supported Storage	4x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 6x SATA 6G
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Internal I/O Ports	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 4x USB 2.0 ports 4x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports 1x USB4 card connector (JTBT_U4_1, supports RTD3)
TPM (Trusted Platform Module )	1x TPM pin header(Support TPM 2.0)
Others
Special Features	LED FEATURE: 4x EZ Debug LED
Warranty Information
Manufacturing Warranty	3 years
