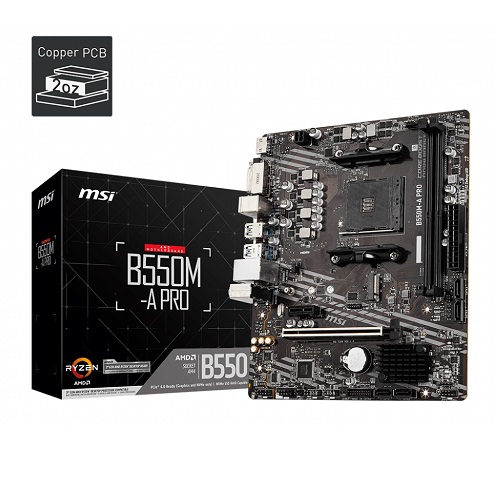

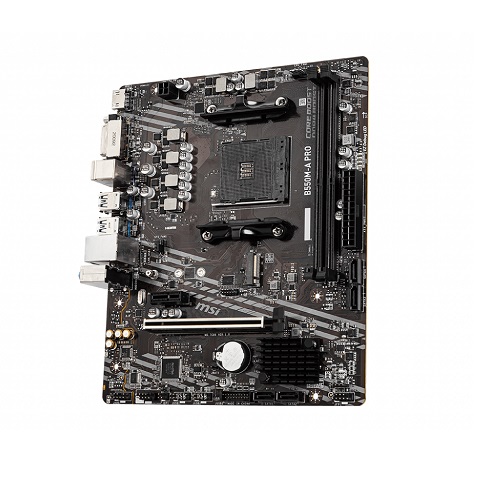

MSI B550M-A PRO DDR4 AMD AM4 Micro ATX Motherboard
Original price was: ৳ 13,420.৳ 12,000Current price is: ৳ 12,000.
Key Features
- Model: B550M-A PRO
- Supports AMD Ryzen 5000 & 3000 Series desktop processors
- Supports DDR4 4600(OC)MHz
- PCIe 4.0, Lightning Gen4 x4 M.2
- 2oz Thickened Copper PCB
Specification
| Basic Information | ||
| Supported CPU | Supports AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors | |
| Chipset | AMD B550 Chipset | |
| Audio | Realtek ALC892/ALC897 Codec | |
| Expansion Slots | ||
| PCI | PCI-E X16 x 1 PCI-E (Gen4 / Gen3) |
|
| M.2 Socket | 1 x M.2 Socket | |
| Memory | ||
| Type | DDR4 | |
| Slots | 1x PCIe 3.0 x1 slot 1 1x PCIe 4.0/3.0 x16 slot The supported specification depends on the installed processor. |
|
| Supported Memory | 2x DDR4 memory slots, support up to 64GB 1 Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE 1DPC 1R max speed 4600 MHz 1DPC 2R max speed 3866 MHz Dual-channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory |
|
| Maximum Memory | 64GB | |
| Graphics | ||
| Graphics | 1x HDMI 2.1 port, supports a maximum resolution of 4096×2160 @60Hz 1x DVI-D port, supports a maximum resolution of 1920×1200@60Hz Available for the processor with integrated graphics. Graphics specifications may vary depending on the CPU installed. |
|
| Max Shared Memory | 16 GB | |
| Connector & Ports | ||
| HDMI | 1 x HDMI | |
| USB (s) | AMD B550 Chipset 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel |
|
| LAN Port (s) | 1x Realtek RTL8111H Gigabit LAN | |
| Supported Storage | AMD B550 Chipset 4x SATA 6Gb/s ports 1x M.2 slot (Key M) (from AMD Processor) Supports PCIe 4.0/ 3.0 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices The supported specification depends on the installed processor. Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices |
|
| Audio | 7.1-Channel High Definition Audio | |

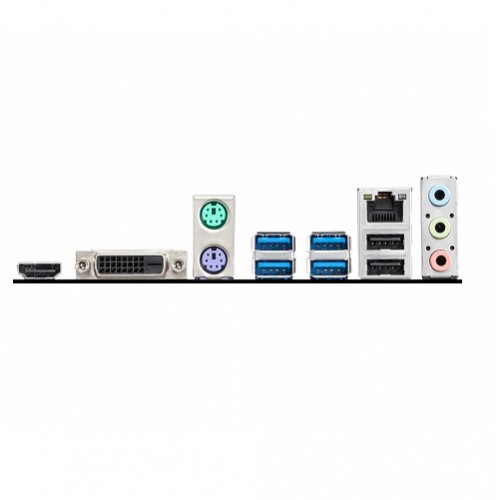

| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 4-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper |
|
| TPM (Trusted Platform Module ) | 1 x TPM module connector | |
| Warranty Information | ||
| Manufacturing Warranty | 3 Years Warranty | |
| BRAND | MSI |
|---|
